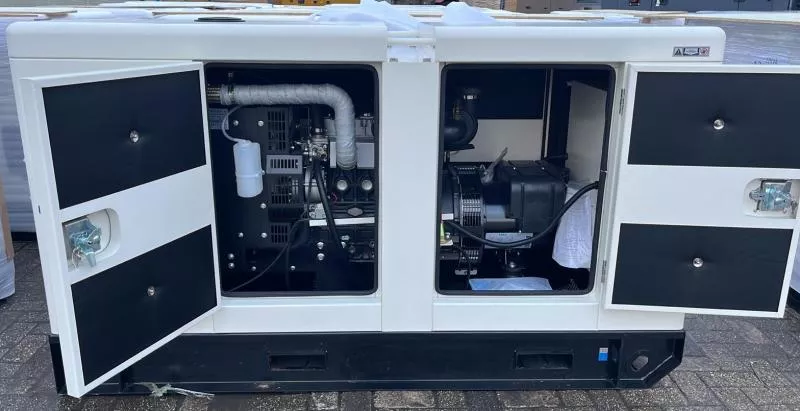

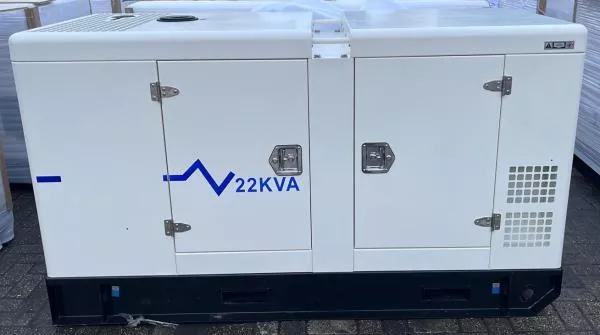

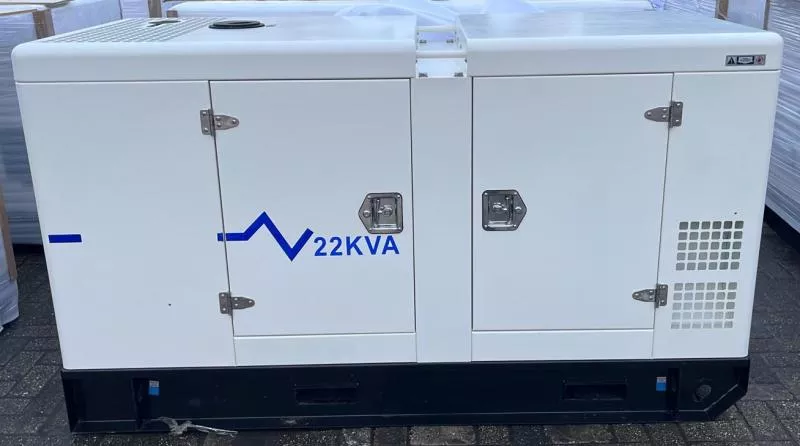

PERKINS 4D22-D5 GENERATOR
TOP

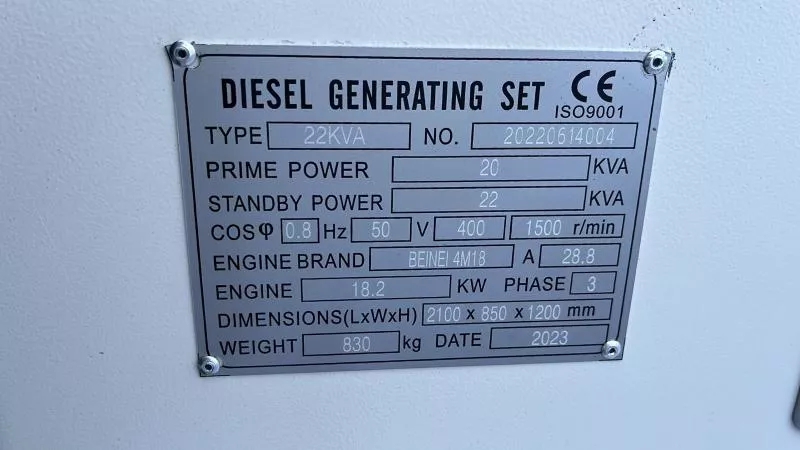

| Technical Data | ||
| Model | 22kva | |
| Prime power | kva kw | 20 16 |
| Standby power | kva kw | 22 18 |
| Rated voltage line to line | V | 230/400 |
| Rated current | A | 28,8 |
| Maximun sound level | db@7m | 70 |

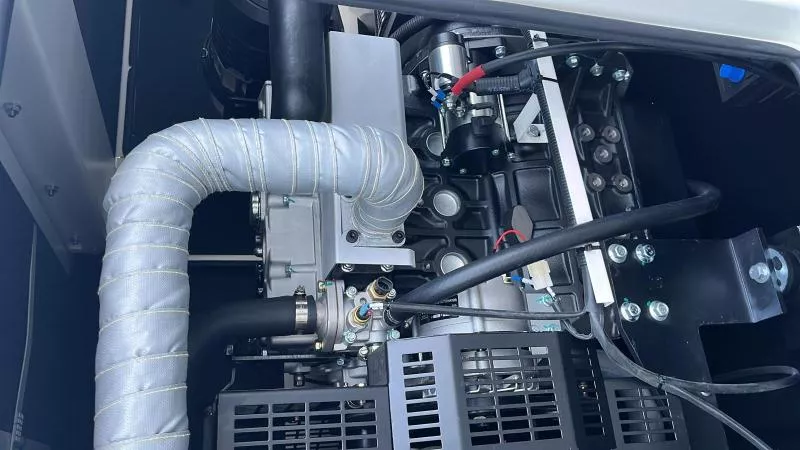

| Engine-Perkins imitation | ||

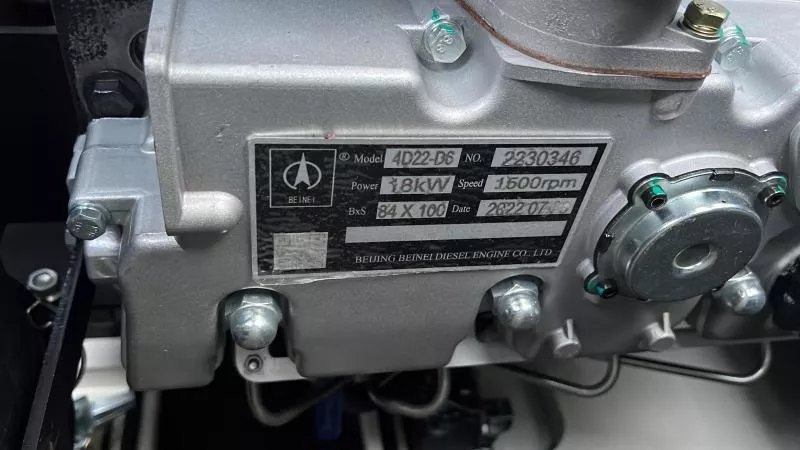

| Model | 4D22-D5 | |
| Aspiration | Four-stroke, water-cooled, In line, Natural apirated | |
| Fuel system | Direct injection | |
| No. cylinders | 4 | |
| Displacement | L | 2,216 |
| Bore*Stroke | mm | 84x100 |
| Compression ratio | 23.3:1 | |
| Rated speed | r/min | 1500 |
| Governor | Mechanical | |
| Engine size | mm | 840x462x787 |
| Engine wet weight | kg | 242 |
| Fire order | 1-3-4-2 | |
| Start Motor | V | 12 |
| Rotation | Anti-clockwise, viewed on the flyweel | |
| Air inlet | ||
| Air inlet | Air inletmounted air filter | |
| Fuel system | ||
| mechanical governor | cassette type fuel pump | |
| fuel filter | split element type | |
| Fuel System | ||
| 110% load(Standby power) | L/h | 6,9 |
| 100% load(Prime power) | L/h | 6,2 |
| 75% load(Prime power) | L/h | 4,8 |
| 50% load(Prime power) | L/h | 3,5 |
| Fuel capacity for silent genset | L | 55 |
| Fuel capacity for open genset | L | 55 |
| Lubrication System | ||
| Oil capacity | L | 10,6 |
| Cooling System | ||
| Total coolant capacity | L | 7 |
| Standard Features | ||
| Engine(Perkins ENGINE imitation) | ● | |
| Radiator 50°C max,fans are driven by belt | ● | |
| 12V charge alternator | ● | |
| Alternator: single bearing alternator IP23 | ● | |
| insulation class H/H | ● | |
| Standard auto control system | ● | |
| Main line circuit breaker / ACB | ● | |
| Base fuel tank | ● | |

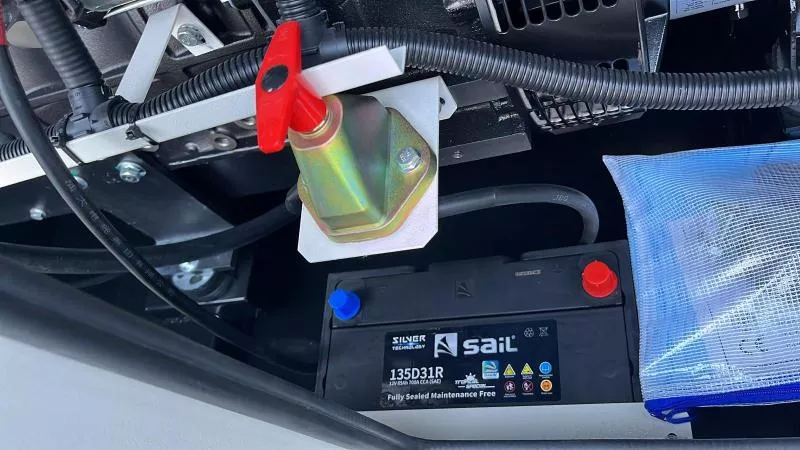

| 12V batteries, rac and cable | ● | |
| Exhaust system(Ripple flex exhaust pipe) | ● | |
| Exhaust siphon, flange, muffler | ● | |
| User manual | ● | |
| Battery charge | ● | |
| Water heater | ● | |
| Options | ||
| Alternator heater | ○ | |
| One set of air filter, fuel filter, oil filter | ○ | |
| PMG | ○ | |
| Water oil separator | ○ | |
| Daily fuel tank | ○ | |
| Remote control panel | ○ | |
| Automatic transfer switch/ATS | ○ | |
| Switch box | ○ | |
| Standard: ● | Options: ○ | |
| Alternator | ||
| Model | TAL-40-F | |
| Alternator Brand | Leroy Somer | |
| Phase | 3 | |
| Voltage | V | 230/400 |
| Wiring Type | 12 wires | |
| Bearing | 1 | |
| Power factor | 0,8 | |
| Frequency | Hz | 50 |
| Prime power | KVA | 20 |
| Exciter Type | Brushless, self-excitation | |
| Voltage regulation | % | ±0.5 |
| Protection Grade | IP 23 | |
| Insulation grade | H | |

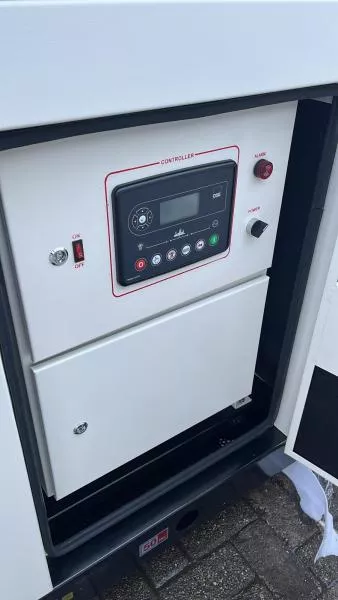

| Controller-Deepsea | ||

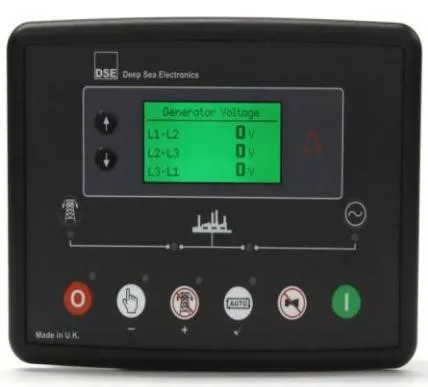

| Model | DSE 6120 | |
| 7 configurable digital inputs Built-in governor and AVR control Base load (kW export) functionality Mains (utility) de-coupling protection Generator power (kW, kVA) monitoring Overload (kW & kV Ar) protection Emergency stop Start failure |  | |
| Unit Dimensions(Basic unit) | ||
 | ||

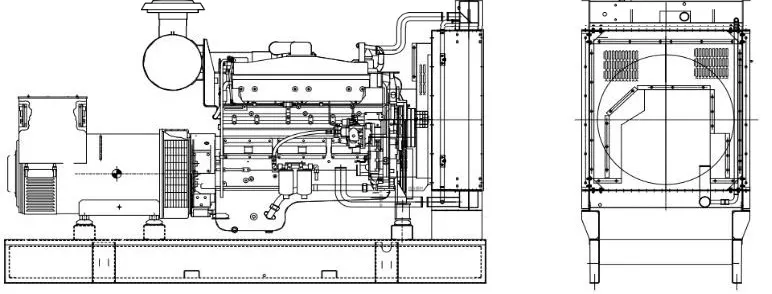

| Open Type | ||
| L*W*H | mm | 1450*800*1100 |
| Weight | kg | 580 |
 | ||

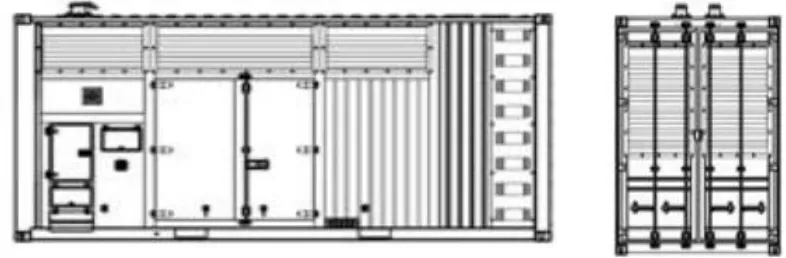

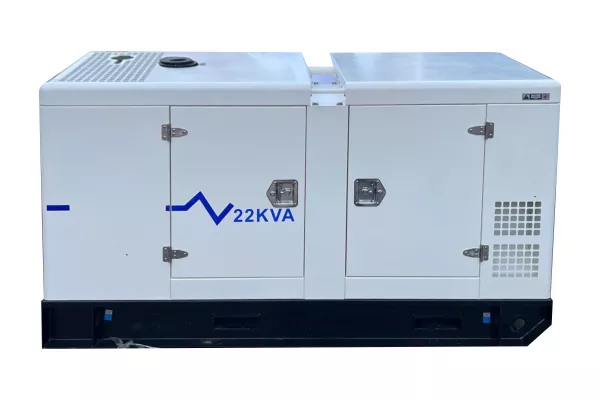

| Silent Type | ||
| L*W*H | mm | 2100*900*1250 |
| Weight | kg | 780 |
| Warranty | ||
| Perkins Beinei Engine 12 months from date of purchase or 1000 hours. Generator 12 months from date of purchase or 1000 hours (whichever comes first). | ||
